Switchgear Production Line Case: Low Voltage Cabinet Assembly and Final Assembly Flow

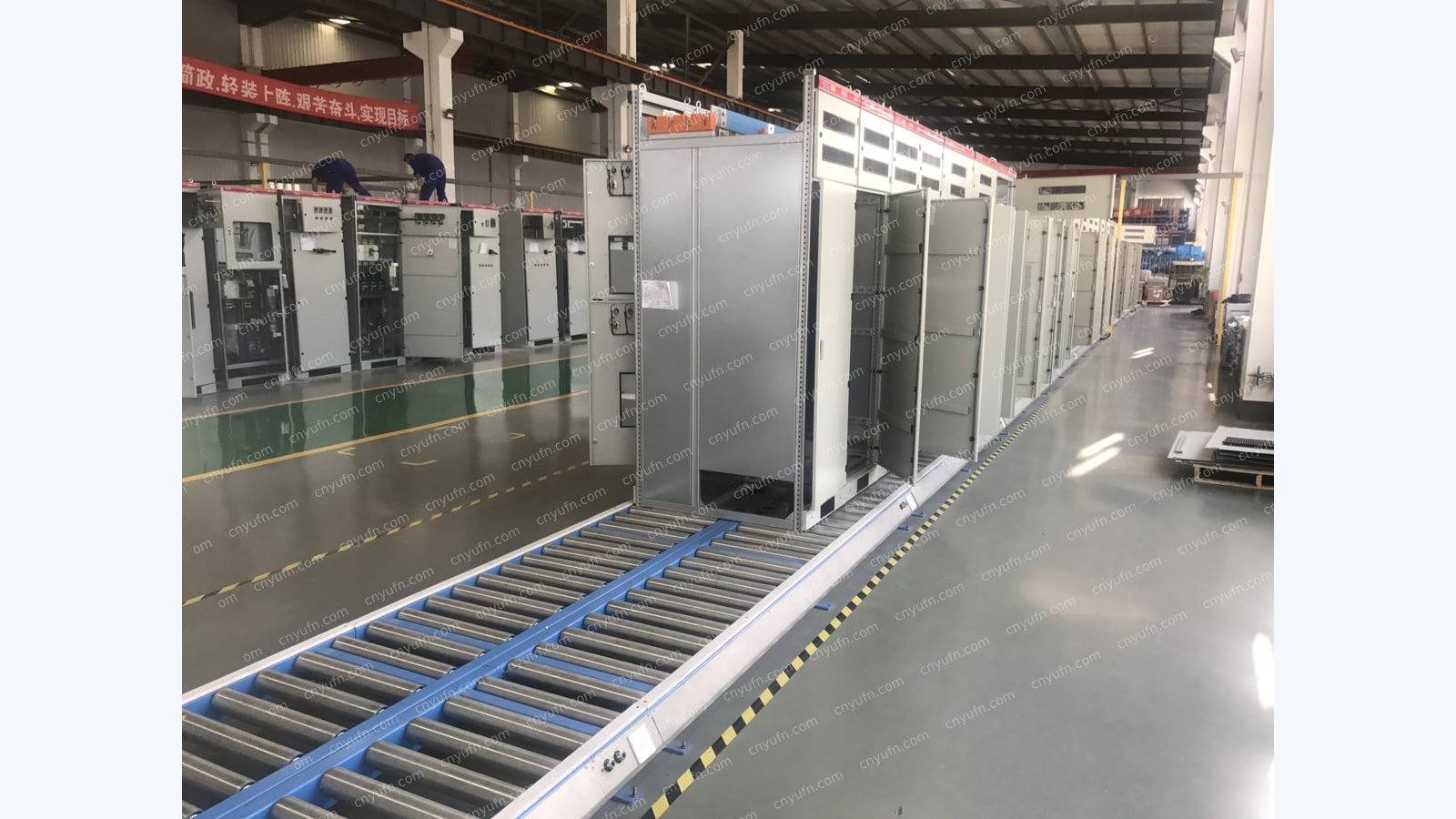

low voltage switchgear assembly line

high and low voltage switchgear production line

switchgear production line overview

switchgear assembly production line

Project Overview

This customer case presents a switchgear production line solution for an electrical panel manufacturing factory. The project covers low voltage cabinet assembly, high and low voltage switchgear production, assembly flow planning, and final assembly organization. The goal is to turn scattered cabinet assembly work into a clearer and more repeatable production process.

For a switchgear manufacturer, the purpose of a production line upgrade is not simply to make the workshop look modern. The real value is to make cabinet assembly safer, more repeatable, easier to manage, and easier to explain to overseas buyers during factory audits. Taizhou Yufeng Intelligent Equipment Co., Ltd. designs switchgear production line projects around workstation layout, cabinet movement, component handling, secondary wiring, final assembly, inspection points, and long-term expansion.

Customer Manufacturing Challenges

Before the upgrade, cabinet movement paths were not clear enough, assembly areas and material areas crossed each other, and operators spent extra time waiting or moving parts. Because low voltage and high voltage cabinet models vary by order, temporary workstation changes affected both efficiency and workshop management.

In many traditional switchgear workshops, operators rely on temporary carts, manual lifting, and personal experience to move cabinets between processes. This may work for small batches, but it becomes difficult to control when order volume increases. The factory may face unclear material flow, inconsistent operating height, long waiting time between stations, limited process visibility, and higher pressure during customer visits. A practical automation line should reduce unnecessary movement while keeping the production process easy for operators to understand.

Yufeng Production Line Solution

Yufeng divided the production line into cabinet entry, assembly workstations, final assembly, inspection, and unloading areas. The low voltage switchgear assembly line standardizes basic assembly work. The high and low voltage switchgear production line supports a wider product range. The switchgear assembly production line connects separate processes into a visible and manageable workflow.

The line can be customized according to cabinet dimensions, plant layout, product model range, output target, wiring process, and inspection requirements. Typical modules include cabinet body assembly equipment, final assembly stations, secondary wiring workstations, low voltage switchgear assembly lines, high voltage switchgear assembly lines, pneumatic balance lifting devices, material buffer areas, mobile work platforms, safety fencing, and digital upgrade interfaces.

Practical Value for Manufacturers

After the upgrade, the factory can arrange people and processes more clearly. Cabinet flow is easier to understand, production rhythm is easier to control, and the workshop presents a more professional image during overseas customer visits.

For international buyers, a clean and well-organized switchgear production line helps demonstrate that the supplier has stable delivery capability. Buyers do not only evaluate the equipment itself; they also look at how production is managed, how quality is controlled, how operators work safely, and whether the factory can support future batch orders. A visible, repeatable, and well-planned assembly process makes communication easier and increases trust.

Custom Configuration Options

Area	Options
Workstations	Cabinet body assembly, primary assembly, secondary wiring, final assembly, inspection, transfer
Transfer	Manual-assisted transfer, rail transfer, mobile platform, RGV-ready layout
Assistance	Pneumatic balance lift, lifting platform, positioning fixture, safety fence
Quality control	Process inspection, wiring check, appearance check, functional test preparation
Digital upgrade	Barcode, work instruction display, data collection, MES interface

Line length, workstation quantity, platform height, cabinet positioning, material buffer quantity, and inspection points can all be adjusted according to the factory layout. Barcode scanning, work instruction displays, and production data collection can also be added later.

Suitable Applications

This solution is suitable for low voltage switchgear manufacturers, high voltage switchgear manufacturers, ring main unit factories, solid insulated switchgear producers, electrical panel builders, and power distribution equipment manufacturers. Whether the customer is building a new workshop or upgrading an existing assembly area step by step, Yufeng can design a switchgear production line based on drawings, factory space, production capacity, and quality control requirements.

Project Summary

A good switchgear production line is not a pile of machines. It is a manufacturing system that improves workflow, safety, repeatability, quality control, and buyer confidence. By combining workstation design, assisted lifting, cabinet transfer, and inspection planning, a factory can reduce manual handling and build a more professional production capability for long-term delivery. Explore more customer cases or contact us to discuss a custom switchgear assembly line project.
