Switchgear Cabinet Body Assembly and Secondary Wiring Production Line Case

Project Overview

This case focuses on the integrated design of switchgear cabinet body assembly, secondary wiring, assisted component handling, and final assembly workstations. For electrical panel manufacturers, cabinet structure quality, wiring efficiency, heavy component handling, and assembly rhythm all affect delivery performance.

For a switchgear manufacturer, the purpose of a production line upgrade is not simply to make the workshop look modern. The real value is to make cabinet assembly safer, more repeatable, easier to manage, and easier to explain to overseas buyers during factory audits. Taizhou Yufeng Intelligent Equipment Co., Ltd. designs switchgear production line projects around workstation layout, cabinet movement, component handling, secondary wiring, final assembly, inspection points, and long-term expansion.

Customer Manufacturing Challenges

The customer needed to manage cabinet positioning, structural assembly, component installation, wiring preparation, and pre-inspection work at the same time. When these processes are scattered, operators move frequently inside the workshop and heavy component handling becomes less safe.

In many traditional switchgear workshops, operators rely on temporary carts, manual lifting, and personal experience to move cabinets between processes. This may work for small batches, but it becomes difficult to control when order volume increases. The factory may face unclear material flow, inconsistent operating height, long waiting time between stations, limited process visibility, and higher pressure during customer visits. A practical automation line should reduce unnecessary movement while keeping the production process easy for operators to understand.

Yufeng Production Line Solution

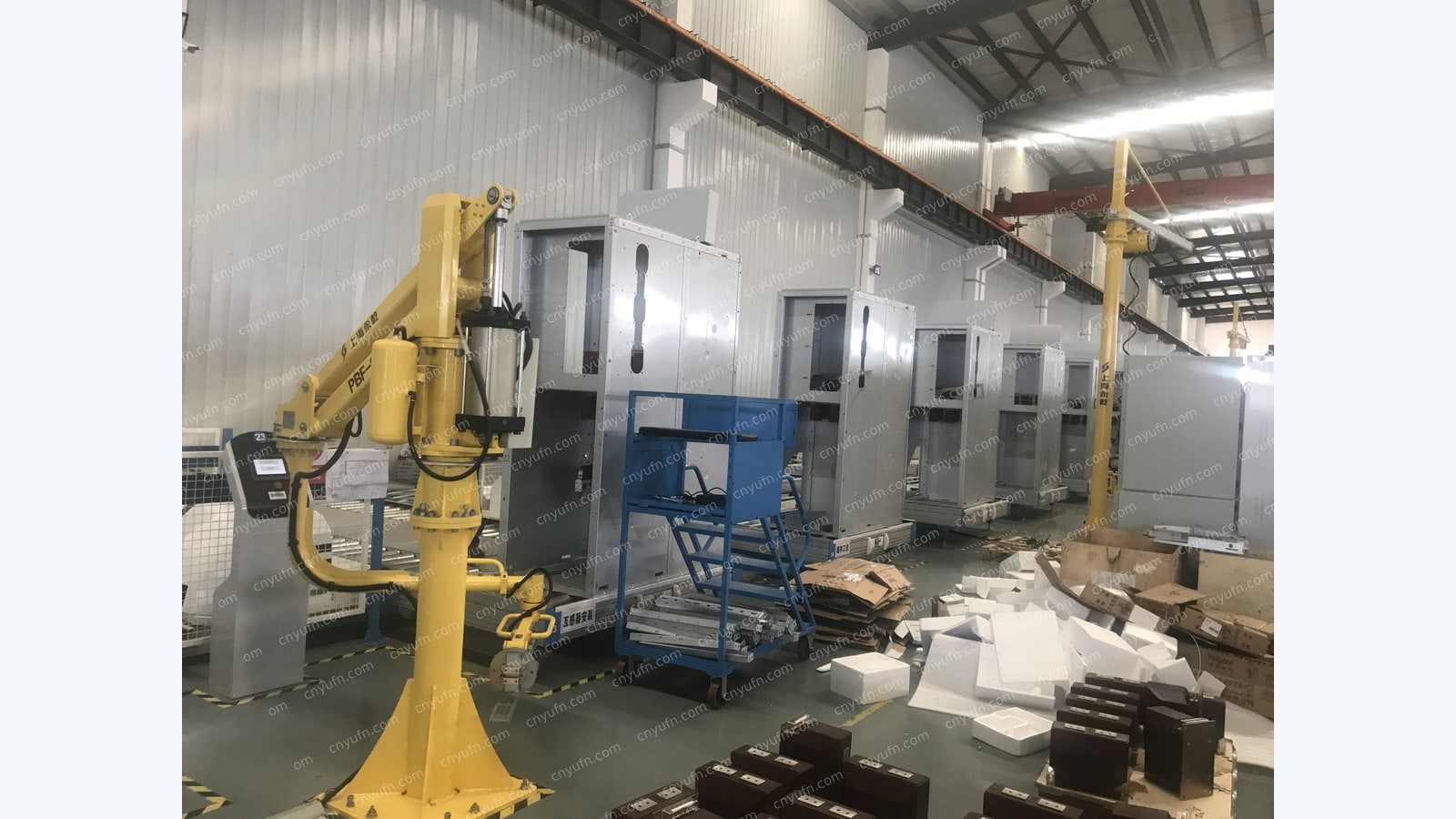

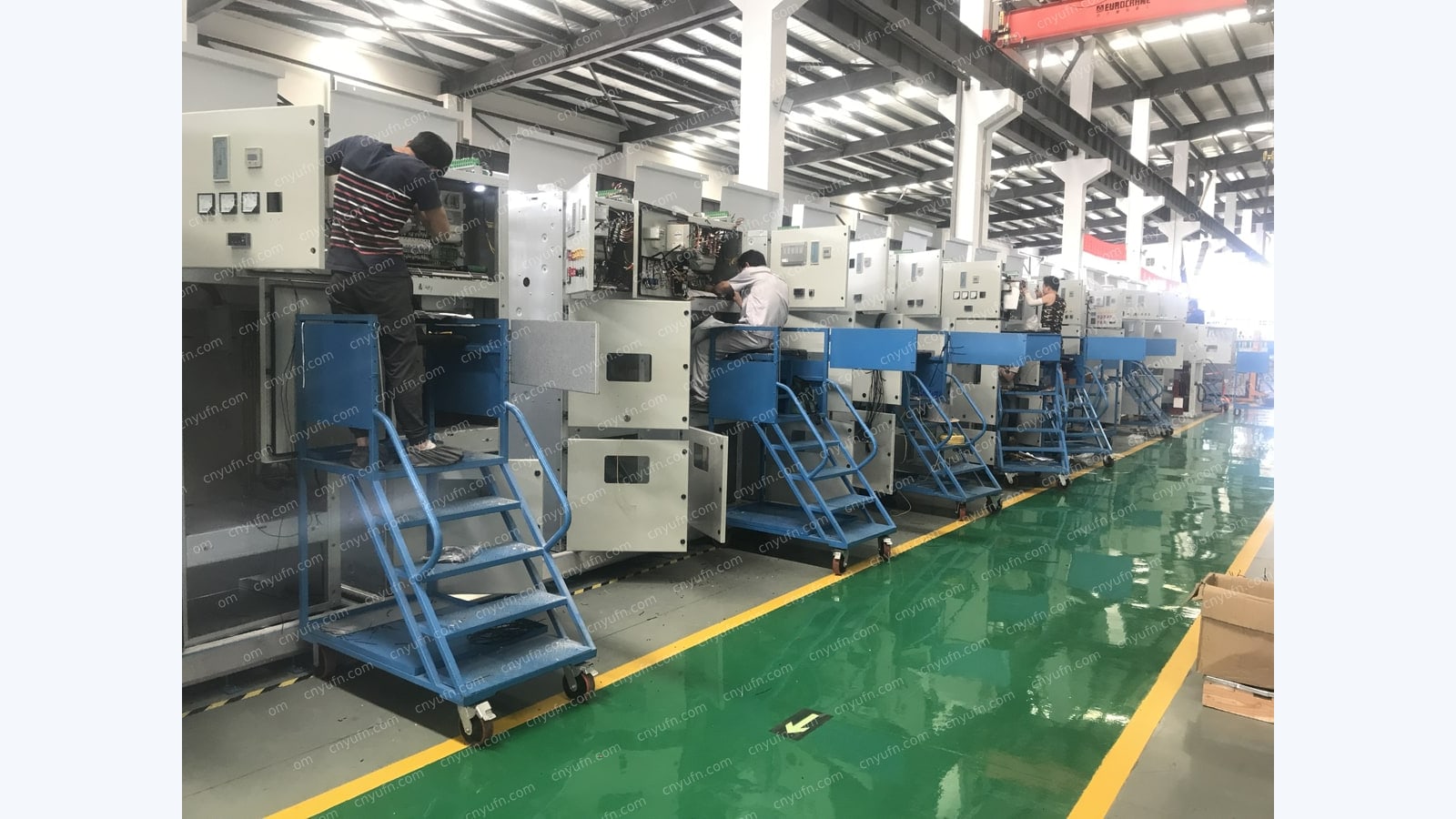

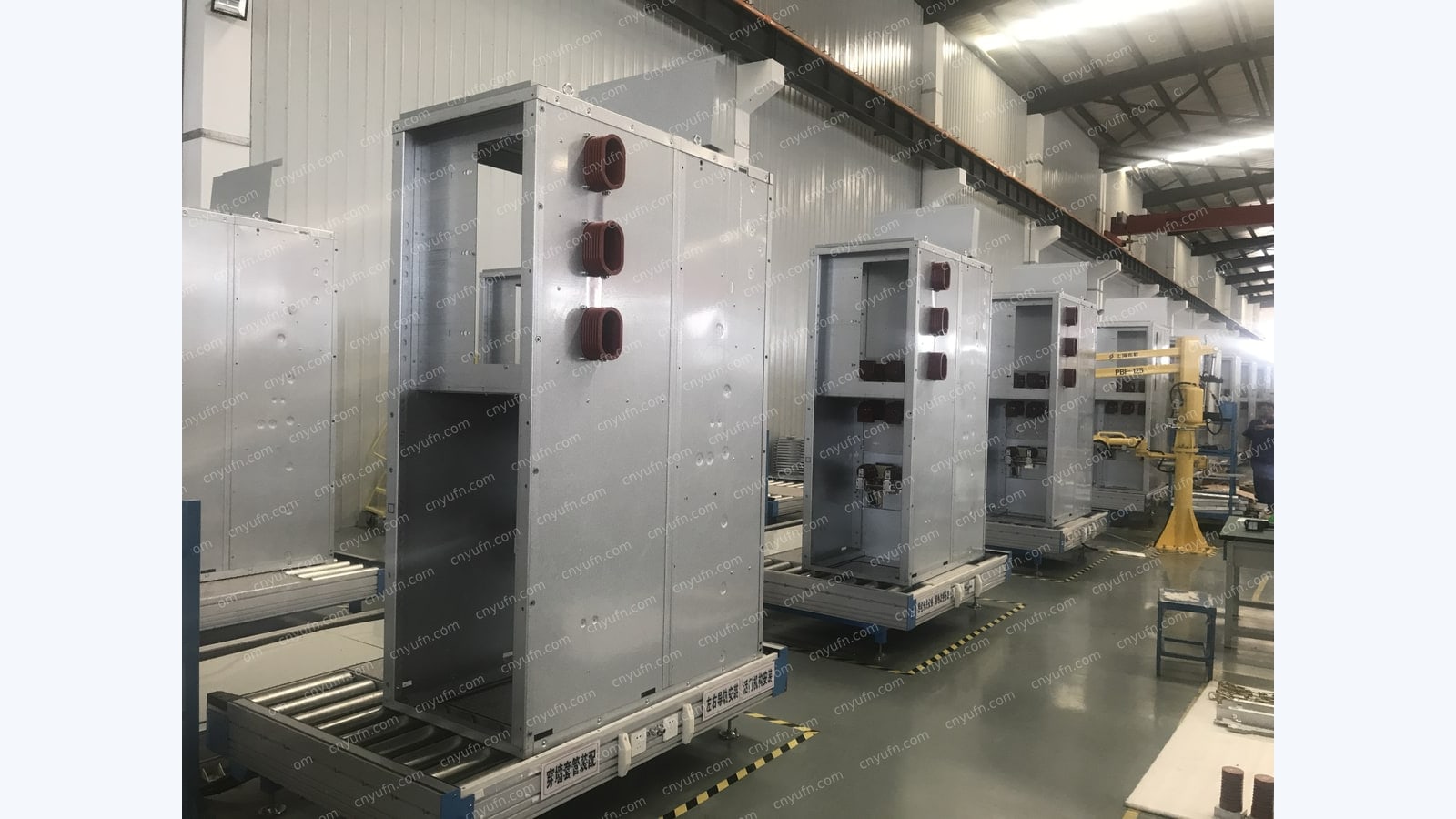

Yufeng combined cabinet body assembly equipment, final assembly line equipment, secondary assembly workstations, and a pneumatic balance lifting machine into one process logic. The cabinet body assembly station improves structural stability. The final assembly line connects main operations. The secondary assembly area centralizes wiring and component installation. Assisted lifting reduces the pressure of handling heavy parts.

The line can be customized according to cabinet dimensions, plant layout, product model range, output target, wiring process, and inspection requirements. Typical modules include cabinet body assembly equipment, final assembly stations, secondary wiring workstations, low voltage switchgear assembly lines, high voltage switchgear assembly lines, pneumatic balance lifting devices, material buffer areas, mobile work platforms, safety fencing, and digital upgrade interfaces.

Practical Value for Manufacturers

The integrated solution reduces manual handling, improves cabinet positioning repeatability, and keeps the secondary assembly area cleaner. The factory can adjust staffing according to order types while keeping a stable process sequence.

For international buyers, a clean and well-organized switchgear production line helps demonstrate that the supplier has stable delivery capability. Buyers do not only evaluate the equipment itself; they also look at how production is managed, how quality is controlled, how operators work safely, and whether the factory can support future batch orders. A visible, repeatable, and well-planned assembly process makes communication easier and increases trust.

Custom Configuration Options

Optional upgrades include wiring instruction screens, component barcode checking, station status display, photo records, and quality traceability. These functions are useful for manufacturers serving overseas buyers who care about process control.

Suitable Applications

This solution is suitable for low voltage switchgear manufacturers, high voltage switchgear manufacturers, ring main unit factories, solid insulated switchgear producers, electrical panel builders, and power distribution equipment manufacturers. Whether the customer is building a new workshop or upgrading an existing assembly area step by step, Yufeng can design a switchgear production line based on drawings, factory space, production capacity, and quality control requirements.

Project Summary

A good switchgear production line is not a pile of machines. It is a manufacturing system that improves workflow, safety, repeatability, quality control, and buyer confidence. By combining workstation design, assisted lifting, cabinet transfer, and inspection planning, a factory can reduce manual handling and build a more professional production capability for long-term delivery. Explore more customer cases or contact us to discuss a custom switchgear assembly line project.
