Customer Case: Ring Main Unit Gas Tank Assembly Line for Power Equipment Manufacturing
Project Overview
This customer case presents a practical automation production line solution designed by Taizhou Yufeng Intelligent Equipment Co., Ltd. for ring main unit gas tank assembly and complete power transmission equipment production. The goal of the project is not to show automation as a decorative technology. The real goal is to help an electrical equipment manufacturer build a safer, more repeatable, and easier-to-manage assembly process for medium-voltage switchgear and related power equipment.
Ring main unit products, gas insulated switchgear parts, and complete electrical cabinets often involve heavy components, multiple assembly positions, strict quality requirements, and frequent model changes. In a traditional workshop, the production process may rely heavily on experienced workers. Operators move around the product, lift or support components manually, adjust assembly height with temporary tools, and spend extra time waiting for the next step. When order volume increases, these hidden inefficiencies become more visible. The customer needed a line that could reduce manual handling, improve process consistency, and create a clearer factory presentation for domestic and overseas buyers.
Customer Challenges
Before the automation upgrade, the customer faced several common problems in power equipment assembly. First, gas tank and cabinet components required stable positioning during assembly, but manual positioning was not always repeatable enough. Second, workers needed different operating heights for internal assembly, top-side installation, wiring, inspection, and adjustment. Fixed workbenches could not support every operation comfortably. Third, the material flow between stations was not clear enough, which increased waiting time and made production management more difficult. Fourth, the factory wanted to improve its ability to present production capability to overseas customers through a more standardized and professional assembly line.
For B2B buyers, especially international manufacturers and distributors, factory capability is not judged only by equipment quantity. Buyers also look at whether the process is organized, whether quality points are visible, whether operators work safely, and whether the production line can support stable delivery. This is why the project was planned as an integrated assembly system instead of a single machine purchase.
Solution Goals
Yufeng designed the solution around four practical goals. The first goal was to improve ergonomics and reduce unnecessary manual handling. The second goal was to create a clearer workflow from one station to the next. The third goal was to improve product consistency through dedicated fixtures, lifting platforms, positioning structures, and controlled station layouts. The fourth goal was to leave room for future digital upgrades, such as barcode scanning, process guidance screens, quality records, station status display, and MES integration.
A good automation solution for electrical equipment manufacturing should not make the workshop more complicated. It should make daily production easier to understand and easier to repeat. In this project, every workstation and support structure was designed to serve a real assembly action: lifting where lifting is needed, positioning where accuracy matters, protecting where safety matters, and keeping the operator's movement path open and efficient.
Ring Main Unit Gas Tank Assembly Line Design

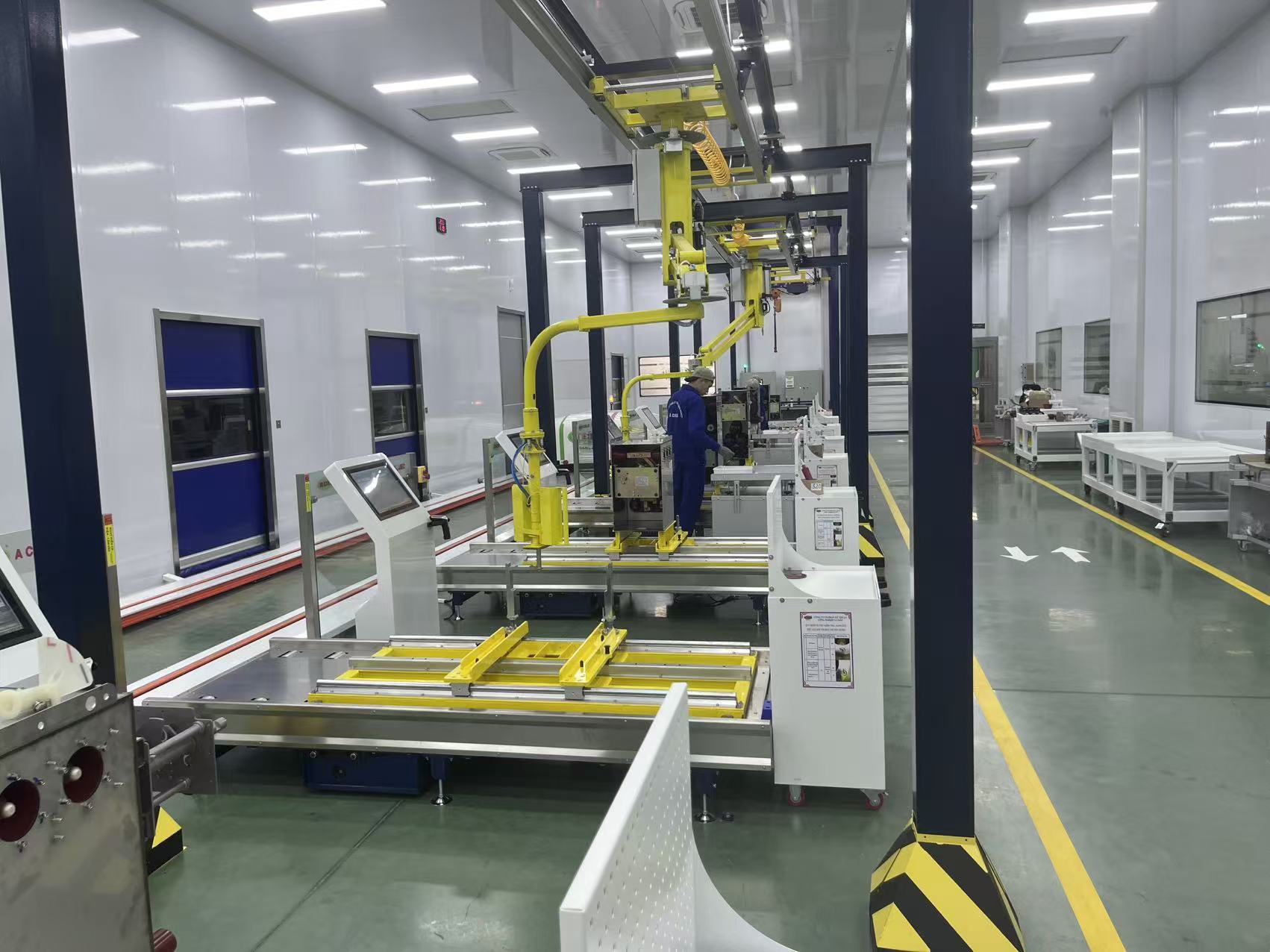

The ring main unit gas tank assembly line shown in the project image uses a station-based layout. The line includes support frames, positioning areas, operating panels, fixture structures, and assisted handling elements. These modules help the gas tank and related components enter the correct assembly position with less direct manual force. For heavy or position-sensitive parts, this approach reduces safety risk and improves repeatability.
During gas tank assembly, the most important design points are stable positioning, easy access, and safe operation. The fixture must hold the workpiece steadily. The lifting and moving mechanisms must run smoothly. The operating panel must be placed where workers can see and control the process naturally. Yufeng adjusts the mechanical structure according to product size, product weight, assembly sequence, and takt time. For factories that need to assemble multiple models on one line, adjustable fixtures and modular station design can be added to improve flexibility.
Complete Power Equipment Production Line Coordination
A complete power transmission equipment production line may include cabinet assembly, component installation, wiring, mechanism adjustment, functional inspection, labeling, and final transfer. Compared with a single machine, a full production line requires stronger planning capability. Each station must be connected with the next one. The material supply path must be easy to understand. The worker's operating area must be safe and comfortable. Inspection points must be placed at the right step, not only at the end of production.
In this case, Yufeng treated equipment, people, material, factory space, and quality control as one system. The lifting workstation supports suitable operating height. The line layout reduces unnecessary movement. The dedicated fixtures improve repeatability. The clear station structure helps supervisors train workers and manage production. This kind of line is especially valuable for manufacturers who want to handle larger orders or serve export markets with stronger factory presentation.
Value of the Lifting Assembly Workstation

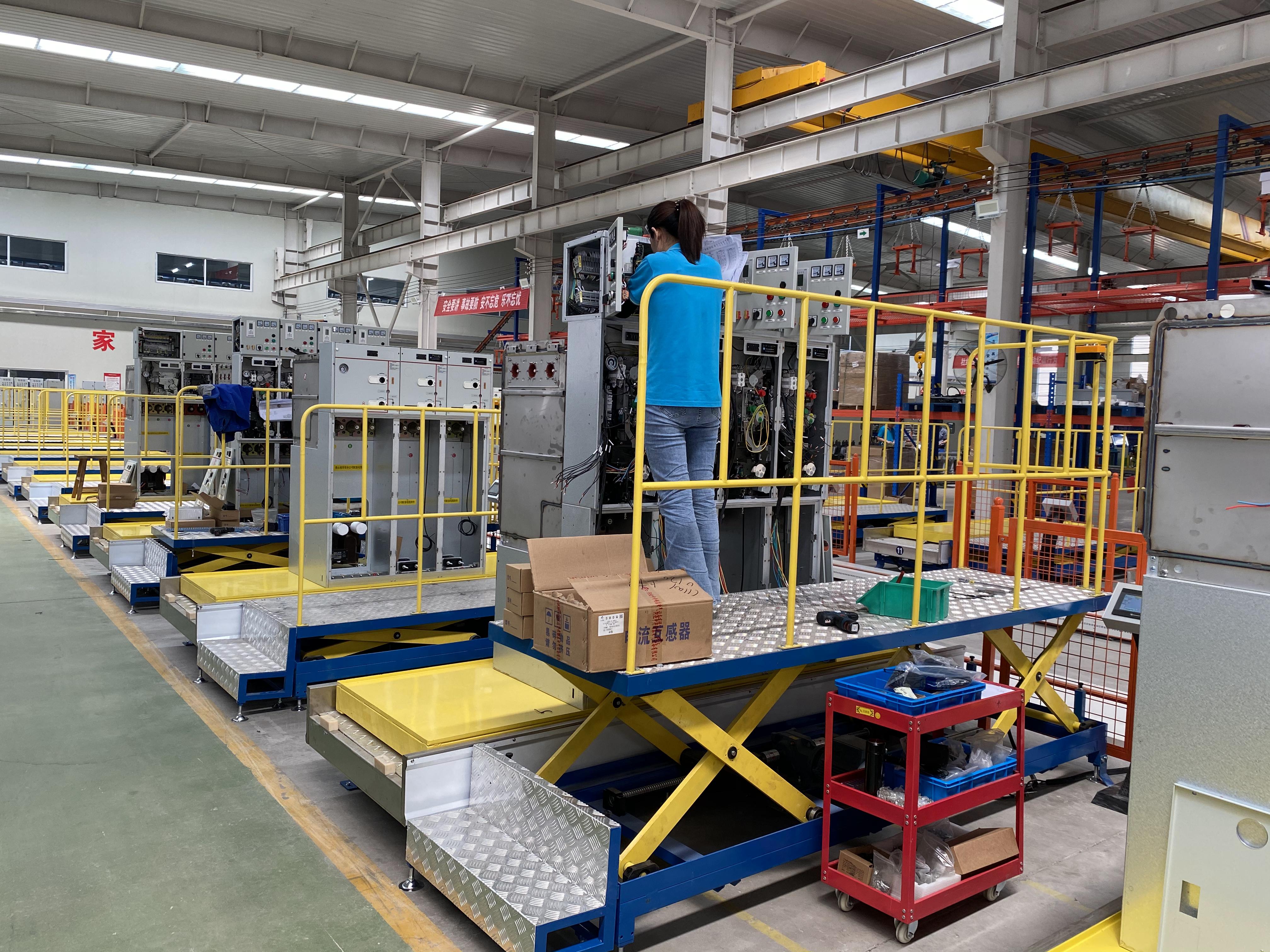

The lifting assembly workstation is one of the key modules in this project. It provides a more suitable working height for operators during cabinet assembly, internal component installation, wiring inspection, and adjustment. Instead of asking workers to bend, climb, or frequently change temporary supports, the lifting workstation allows the product and operator position to match the process requirement.
A lifting workstation should be evaluated by more than lifting height. It must also consider platform stability, load capacity, anti-slip surface, guardrail structure, operator access, tool placement, and maintenance convenience. Yufeng designs these details according to the customer's product weight, assembly posture, factory layout, and daily operation habits. The purpose is to create equipment that workers are willing to use every day, not only a device that looks good in a proposal.
Quality Control and Process Management
One important benefit of a station-based automation line is that quality control can move earlier into the process. In a traditional process, many problems are discovered during final inspection. With a clearer assembly line, key checks can be placed after positioning, after component assembly, before wiring, before functional testing, and before the product moves to the next station. This reduces rework and makes it easier to identify where a problem started.
Depending on the customer's budget and production stage, the line can support different levels of process management. A basic configuration may include standard work instructions, station labels, operation panels, and manual confirmation points. A more advanced configuration may include barcode scanning, torque tool management, photo records, digital work instructions, and production data collection. Yufeng recommends a practical upgrade path rather than forcing unnecessary complexity into the first phase.
Safety and Operator Experience
Electrical equipment production often involves metal components, heavy cabinets, electrical parts, and multiple operators in the same area. Safety must be built into the line layout from the beginning. The walking path should be clear. Transfer areas should avoid conflict. Lifting and moving mechanisms should include appropriate limits and protection. Guardrails, warning colors, operation panels, and workstation boundaries help operators understand where to stand, where to operate, and when to pay attention.
The user experience of the operator is also important. If a button is hard to reach, if a platform is unstable, if tools are too far away, or if the line blocks normal movement, the real production effect will suffer. Yufeng collects on-site feedback during commissioning and adjusts practical details when needed. The best automation production line is not always the most complex one. It is the one that makes repeated work more stable, safer, and easier to manage.
Business Value for Export-Oriented Manufacturers
For export-oriented factories, a professional assembly line can improve both production efficiency and customer confidence. When overseas buyers review a supplier through videos, factory audits, or project photos, they can immediately see whether the workshop is organized and whether the process is controlled. A clear ring main unit assembly line, a safe lifting workstation, and a complete power equipment production line help the factory communicate capability more directly.
This case is suitable for manufacturers of ring main units, switchgear, gas insulated switchgear, power distribution cabinets, and other electrical equipment requiring heavy assembly, workstation lifting, process flow control, and custom fixtures. Yufeng can customize the solution according to product drawings, target output, floor space, operator quantity, inspection requirements, and future expansion plans.
